A client contacted us regarding a 2007 Mercedes-Benz ML (W164 generation) in Surrey with a no-start condition. The vehicle cranked normally but the engine would not run, and the dashboard displayed multiple warning messages — most notably, “Visit Workshop” / “EZS / EIS communication fault”. A diagnostic scan confirmed multiple stored faults pointing to the engine control unit (ECU) — a Bosch ME 9.7 module mounted in the engine bay near the firewall.
What is the Mercedes ME 9.7 ECU?
The ME 9.7 (also written as ME9.7 or ME-9.7) is the Bosch Motronic engine control module fitted to a wide range of Mercedes-Benz vehicles from approximately 2005 to 2011, primarily on the M272 V6 and M273 V8 gasoline engines. It is found on:
- Mercedes ML (W164) — ML350 (M272), ML500/550 (M273), ML63 AMG
- Mercedes GL (X164) — GL450, GL500, GL550
- Mercedes R-Class (W251) — R350, R500
- Mercedes E-Class (W211, W212 early) — E350, E500, E550
- Mercedes S-Class (W221) — S350, S550, S600 variants
- Mercedes C-Class (W203, W204 early) — C280, C350
- Mercedes CLK / CLS / SLK / SL of matching generation
- Mercedes G-Class (W463) — G500, G550
The ME 9.7 is paired with the EZS / EIS (electronic ignition switch) as part of Mercedes’ immobilizer system, and the two modules must be synchronized — corrupted data in either, or a mismatch between them, causes a no-start condition exactly like the one this Surrey customer experienced.
The most common failure modes on ME 9.7:
- Cracked solder joints on the main microcontroller after years of thermal cycling
- Water ingress — the unit’s location in the engine bay makes it vulnerable to leaking cowl drains, especially on W164 ML and X164 GL chassis. Corrosion on the connector pins and PCB causes intermittent then permanent failure.
- EEPROM corruption — after a low battery, jump-start or interrupted coding session
- Internal driver IC failure — fuel injector or ignition coil drivers blow, ECU goes into limp or no-start
- Immobilizer link loss — ME 9.7 stops recognizing the EZS / EIS, refusing to authorize fuel and spark
Our Solution
To resolve the no-start condition without replacing the entire ME 9.7 ECU (which would require Mercedes dealer programming, EZS personalization, and CAD $2,000–$3,500+ in parts plus labour), we performed a bench-level repair and data correction procedure:
- vehicle pre-scan and ownership documentation

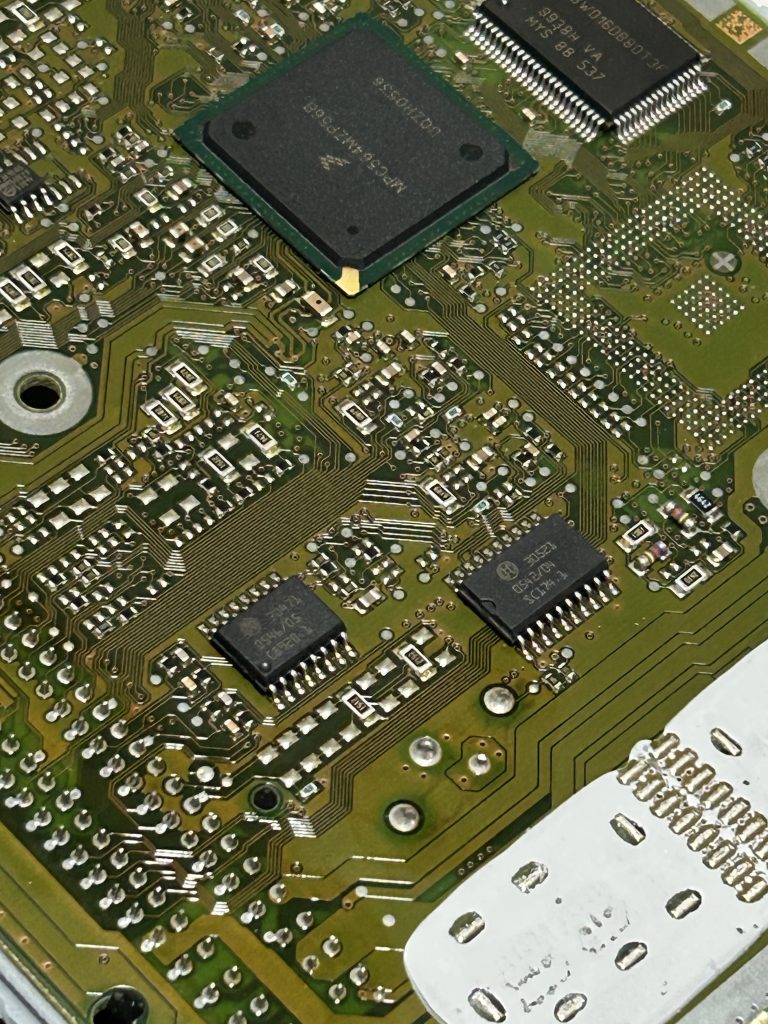

- ME 9.7 unit removed, opened in a controlled environment
- inspection for water damage, corrosion and cracked solder

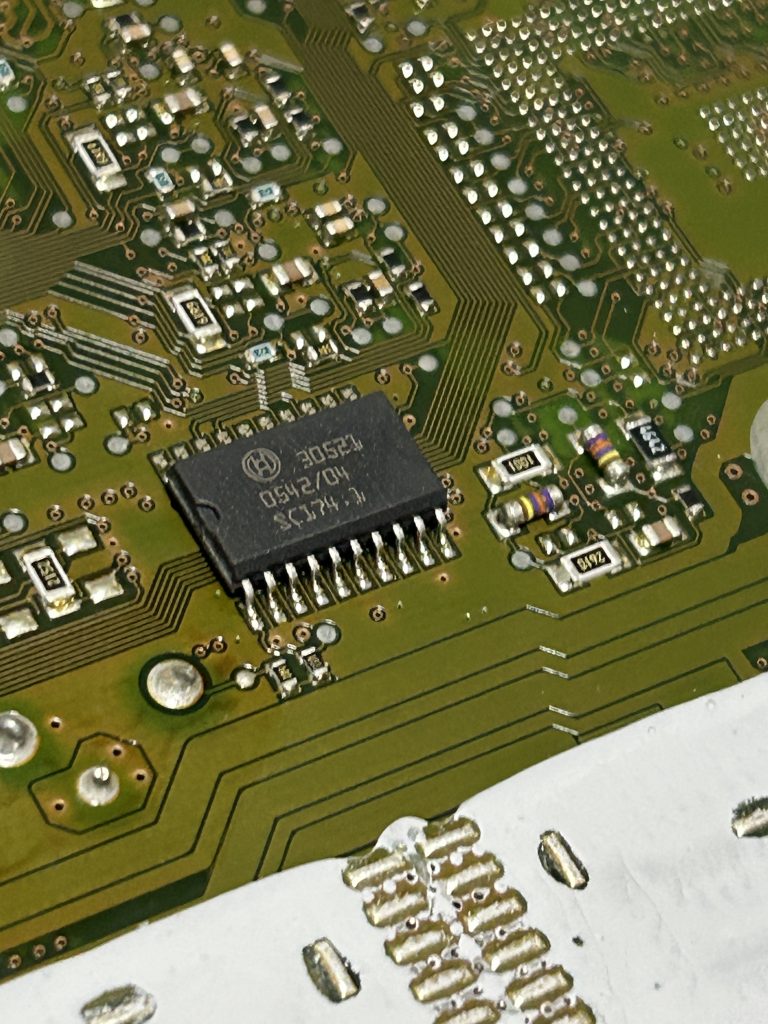

- EEPROM and FLASH data extraction from the original unit
- targeted hardware repair where needed (connector pin restoration, PCB cleaning, solder reflow on critical traces, IC replacement on damaged drivers)
- writing the corrected data back to the module
- re-installation and synchronization with the EZS / EIS
- post-repair scan and road test
After repair:
- engine starts and runs normally
- no DTCs in the engine, EZS, transmission or related modules
- immobilizer authorization confirmed
- vehicle returned same week, fully functional
- no replacement of ME 9.7 required, no Mercedes dealer programming needed
- existing keys and EZS link preserved
Other Mercedes ME 9.7 work we handle
Beyond bench-level repair, we also perform:
- ME 9.7 cloning — when the original unit is beyond repair, we clone its data (VIN, immobilizer link, adaptations, IMMO data) into a donor ME 9.7 so the replacement drops in without dealer coding
- EZS / EIS pairing after ME 9.7 replacement — the immobilizer side of the equation
- ECU virginization — preparing a used ME 9.7 from another vehicle to be re-coded into a new VIN (where customer has supplied the part)
- Transmission control unit (TCU) work on related Mercedes 7G-Tronic boxes (722.9)
- Combined ME 9.7 + EZS + key programming — for vehicles where multiple modules are affected
We work on the full range of Mercedes Bosch ME / MED ECUs from this era, including ME 2.x, ME 2.7, ME 2.8, ME 9.7, MED 17.7 and related Bosch / Continental modules.
Mercedes ME 9.7 ECU repair is one of the most common over-replaced modules on the W164 ML, X164 GL and W251 R-Class platforms. A typical Mercedes dealer response is full ECU replacement plus EZS / EIS personalization at CAD $2,000–$3,500+, with multi-day parts wait. In most cases, bench-level repair and EEPROM correction resolve the fault for a fraction of that cost.
We provide professional Mercedes-Benz ECU repair, ME 9.7 cloning, EZS / EIS personalization and immobilizer work in Surrey & Vancouver, BC at our Langley workshop (19705 Fraser Hwy, V3A 7E9), with mail-in service available for customers across the Lower Mainland and beyond.
If your Mercedes ML, GL, R-Class, E-Class or S-Class is showing a no-start condition, EZS communication fault, or has been quoted a full ECU replacement — talk to us first. In most cases we can resolve it without replacement.
