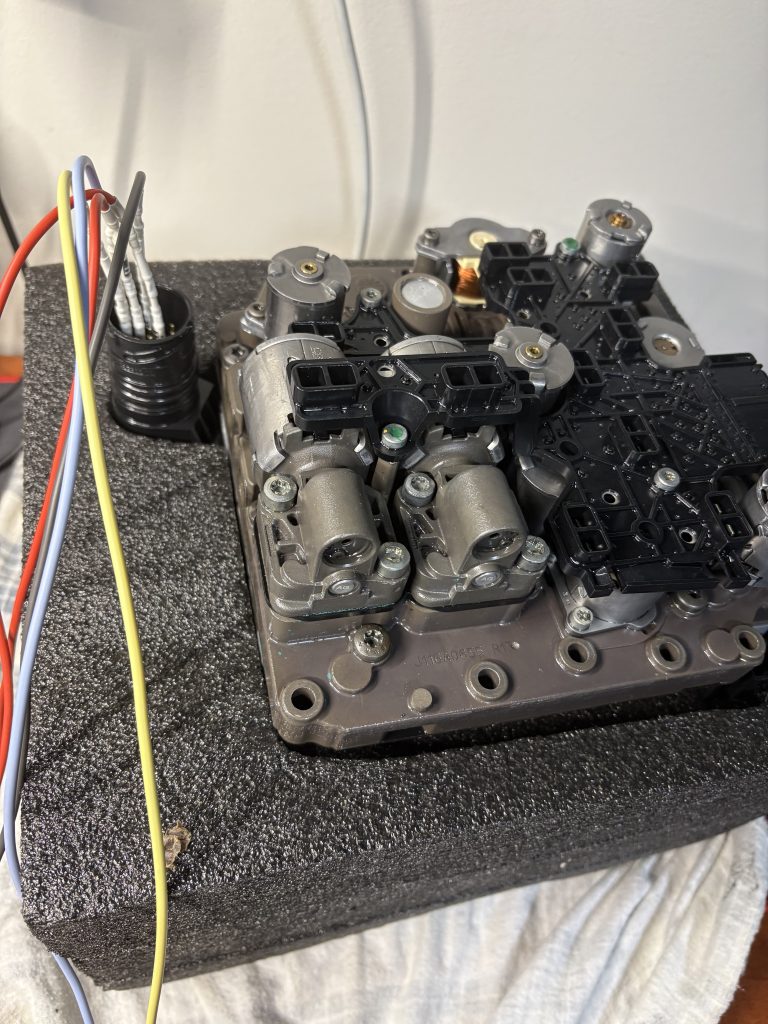

A client contacted us regarding a Volkswagen Golf GTI after purchasing a used DSG DQ250 mechatronic unit — also known as the DSG TCU, DSG control module, transmission control unit (TCU/TCM), or Mechatronik in factory VW/Audi documentation. The vehicle is built on the MQB platform, and the donor part number is 02E927770AQ.
The DQ250 is the 6-speed wet-clutch DSG used across the entire VAG group — VW Golf GTI / Golf R / Passat / Tiguan, Audi A3 / S3 / TT, Škoda Octavia RS / Superb, SEAT Leon Cupra and similar models. The mechatronic itself is shared across most of these vehicles and carries part numbers in the 02E927770 family — common revisions include 02E927770AB, AC, AD, AE, AG, AJ, AL, AM, AN, AP, AQ and AR.
While these revisions are physically interchangeable, each has its own firmware and adaptation data, which is exactly why simply bolting in a donor doesn’t work without further intervention.
| Need a consultation? | Ask a question on Facebook |
The main challenge was that installing a donor unit typically requires online access to ODIS Service with authorization via GEKO, which includes:
- online parameterization
- module adaptation (clutch, gear, K1/K2 pressure)
- factory data loading via SVM (Software Version Management)
Without this, proper transmission operation is not possible — the gearbox will go into limp mode, throw fault codes such as P17BF, P189C, P073D, or refuse to engage gears at all.
The main challenge was that installing a donor unit typically requires online access to ODIS Service with authorization via GEKO, which includes:
• online parameterization
• module adaptation
• factory data loading
Without this, proper transmission operation is not possible.
Our Solution
To avoid complex and costly online dealer programming, we performed a mechatronic cloning procedure directly on our bench.
This process includes:

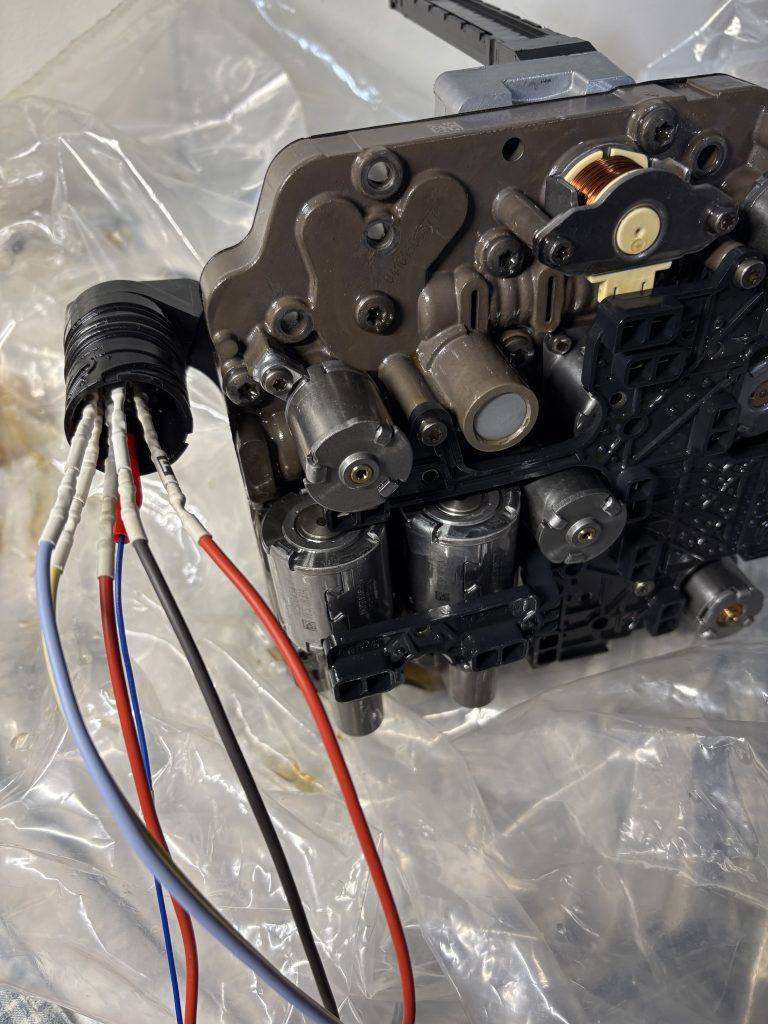

- reading the full EEPROM (typically a 95320 / 95640 series chip storing VIN, immobilizer link, clutch and gear adaptations, wear counters)
- reading the full FLASH memory of the TCU’s microcontroller (Bosch / Temic hardware running on a Tricore-class CPU on later DQ250 revisions)
- transferring all coding, parameters and adaptations
- writing the data into the donor mechatronic at the chip level
The donor unit becomes a complete replica of the original — same VIN, same immobilizer key, same clutch wear and pressure adaptations.
⸻
The following steps were completed:

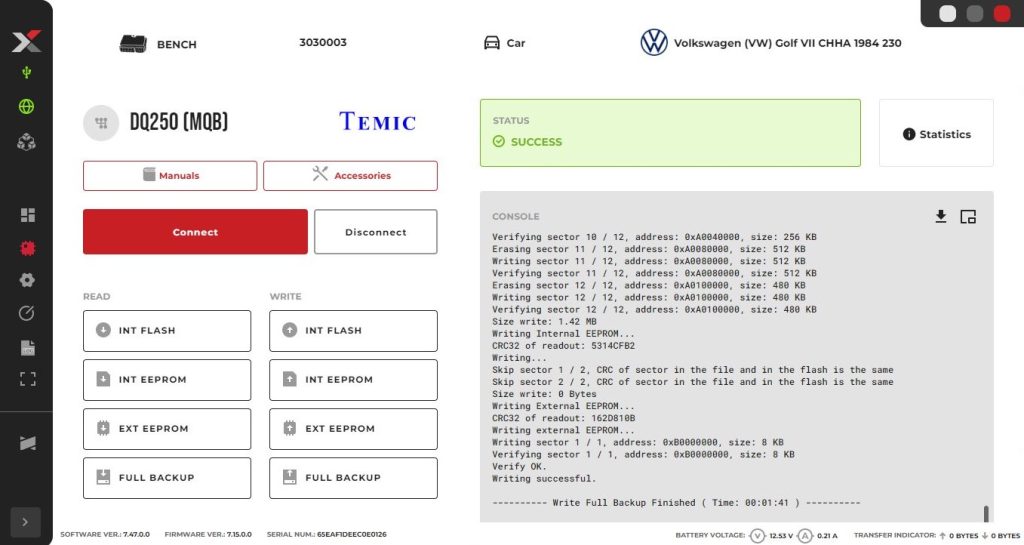

- EEPROM & FLASH data extraction from the original (faulty) mechatronic
- donor unit preparation — backup of factory data before overwriting
- chip-level data writing to the donor TCU
- installation in the vehicle and full road test
All original settings including:
- VIN
- clutch K1/K2 adaptations and wear counters
- transmission-specific parameters (oil temperature offsets, line pressure maps, gear shift points)
- immobilizer / component protection link to the engine ECU
were successfully transferred.
After installation:
- DSG transmission operates flawlessly
- no fault codes present in module 02 — Transmission Electronics
- smooth gear shifting through all 6 forward gears and reverse
- no online programming required, no GEKO session needed
The job was completed successfully, and the client was fully satisfied.
Conclusion
DQ250 mechatronic cloning is an ideal solution when:
- ODIS / GEKO online access is unavailable
- fast repair is required (no 3–7 day wait for dealer programming)
- original adaptations must be preserved (especially clutch wear data on higher-mileage gearboxes)
- the donor mechatronic carries a different VIN that would otherwise trigger Component Protection
