Audi Q7 ECU MED9.1 Failure Diagnosis

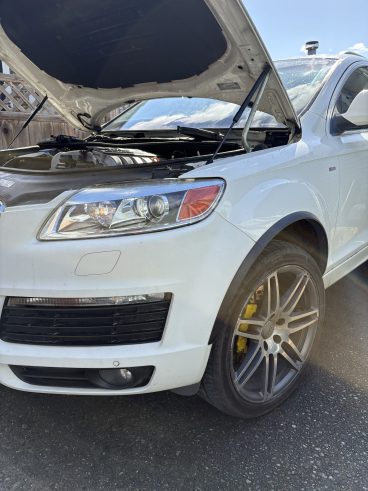

A customer contacted our workshop in Surrey BC, serving the Vancouver area, after their Audi Q7 suddenly stopped starting.
According to the owner, the vehicle had been operating normally, but one day the engine simply refused to start. The starter motor was cranking, but the engine would not fire up.
Our technician performed on-site diagnostics using professional automotive diagnostic equipment. After analyzing engine control system parameters, we identified that the ECU / ECM (Engine Control Module) was not operating correctly.

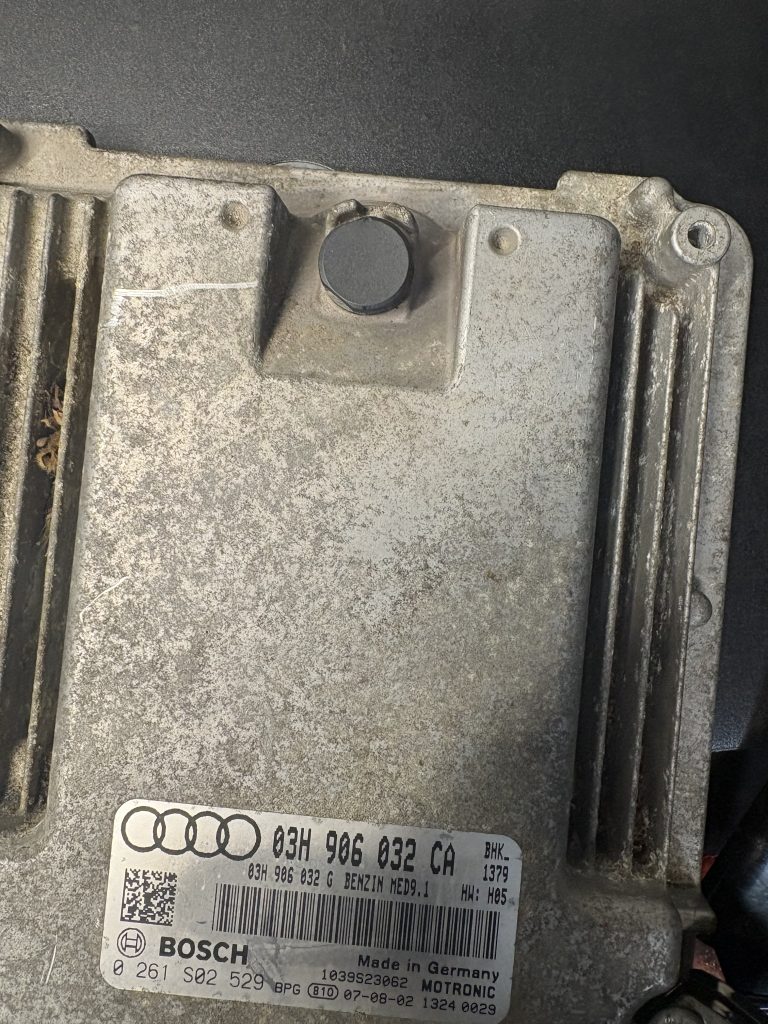

The ECU was removed from the vehicle for further inspection.
⸻
Water Damage Inside the ECU

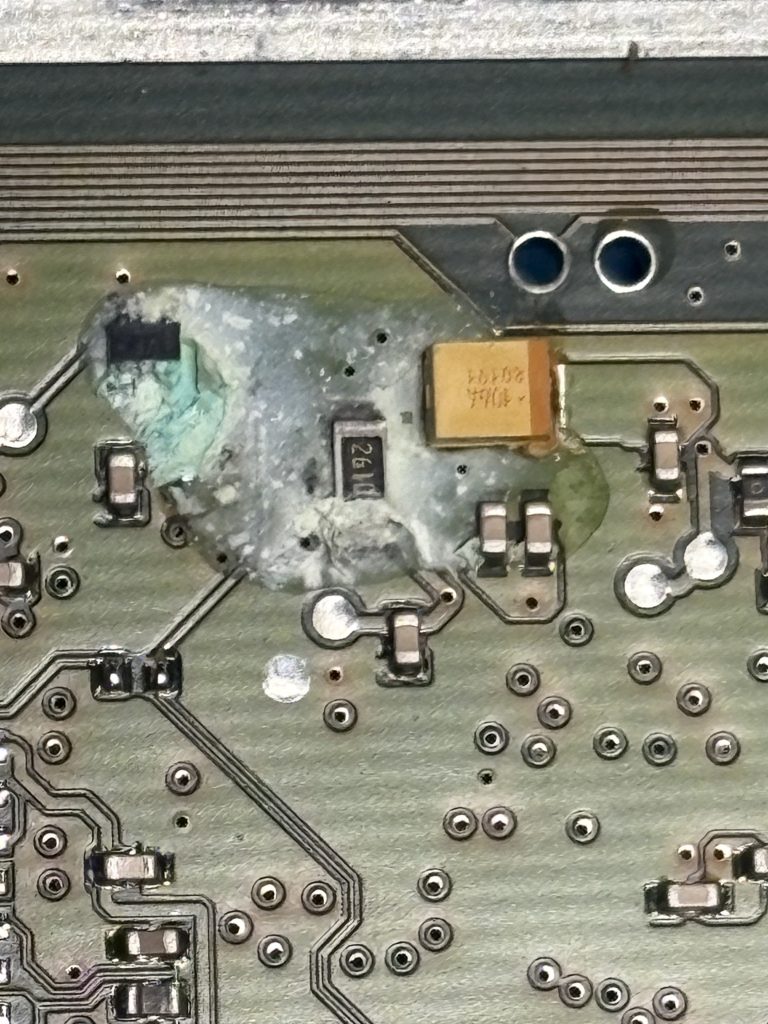

After opening the ECU housing, we discovered clear signs of water intrusion inside the module. The moisture entered the ECU through the housing breather vent.
This is actually a relatively common issue on Audi Q7 vehicles, particularly in climates with frequent rain and high humidity such as British Columbia.
Water contamination inside an ECU can cause:
• corrosion on electronic components
• oxidation of contacts
• damage to microelectronics
• failure of internal circuit traces
ECU Repair Attempt
Our technicians carefully examined the ECU and performed several repair steps:
• electronic component diagnostics
• replacement of a damaged component
• restoration of power supply circuits
However, even after replacing the faulty component, the issue persisted.
The Bosch MED9.1 ECU uses a multi-layer printed circuit board. When moisture penetrates the board, internal signal traces between layers can become damaged.
Once this happens, repairing the ECU becomes extremely difficult and often impractical.
Most likely, water had already affected the internal PCB layers, which made a full repair impossible.
ECU Cloning Solution
The most reliable solution in this case was ECU cloning.
The customer supplied a donor ECU with matching part numbers.
Before the cloning process, the donor module was:
• fully inspected
• electronically tested
• prepared for programming

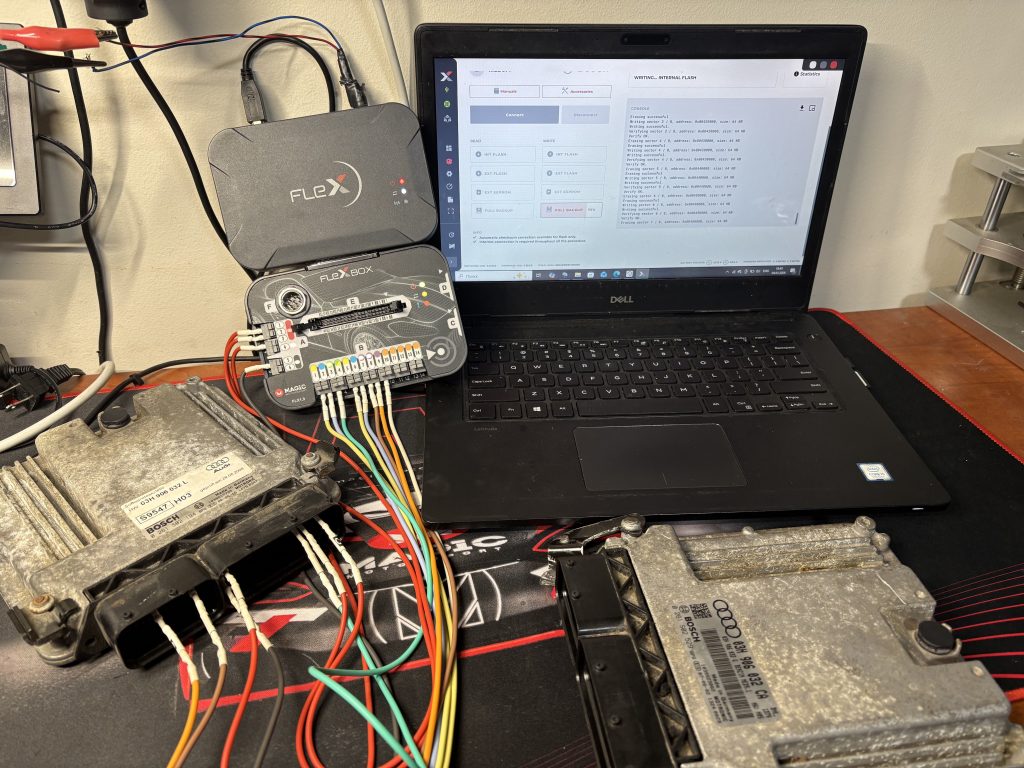

We then performed a full ECU cloning procedure, transferring all data from the original ECU to the donor unit.
Importantly, this cloning process was completed without opening the ECU housing, using professional programming equipment.
The following data was transferred:
• immobilizer data
• VIN number
• engine software
• ECU configuration and adaptations
Final Result

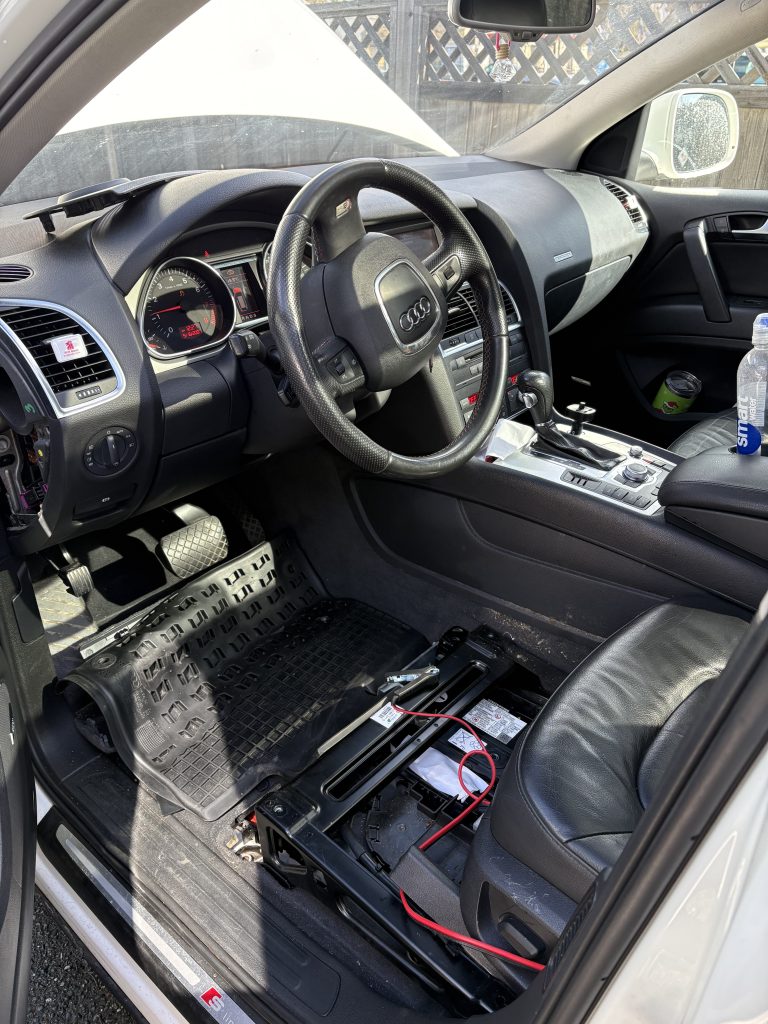

After cloning was completed, the donor ECU was installed back into the vehicle.
The result:
• the engine started immediately
• all systems operated normally
• ECU parameters were verified and stable
• no engine control faults remained
After final testing and verification, the vehicle was fully restored and returned to the customer in perfect working condition.
