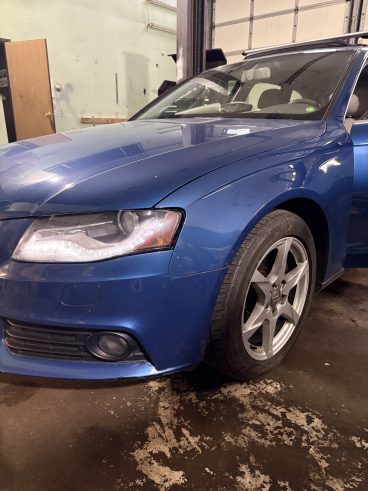

A client came to us with an Audi A4 2.0 TSI experiencing a common issue related to the intake manifold swirl flap system. On these vehicles, failures involving the swirl flaps, their actuator, or the position feedback system are not unusual. Once the mechanism starts to wear out or operate incorrectly, the engine control unit stores related fault codes, and continued driving may eventually trigger additional intake system and plausibility errors.
In this case, repairing the original intake manifold was not economically practical. The client had already purchased a replacement manifold from a different engine version that was designed from the factory without swirl flaps. Mechanically, this solved the physical failure of the original manifold assembly. However, electronically the issue remained unresolved, because the Bosch MED17.1 ECU was still programmed for the original setup and continued to monitor the swirl flap system, actuator movement, and position sensor feedback.

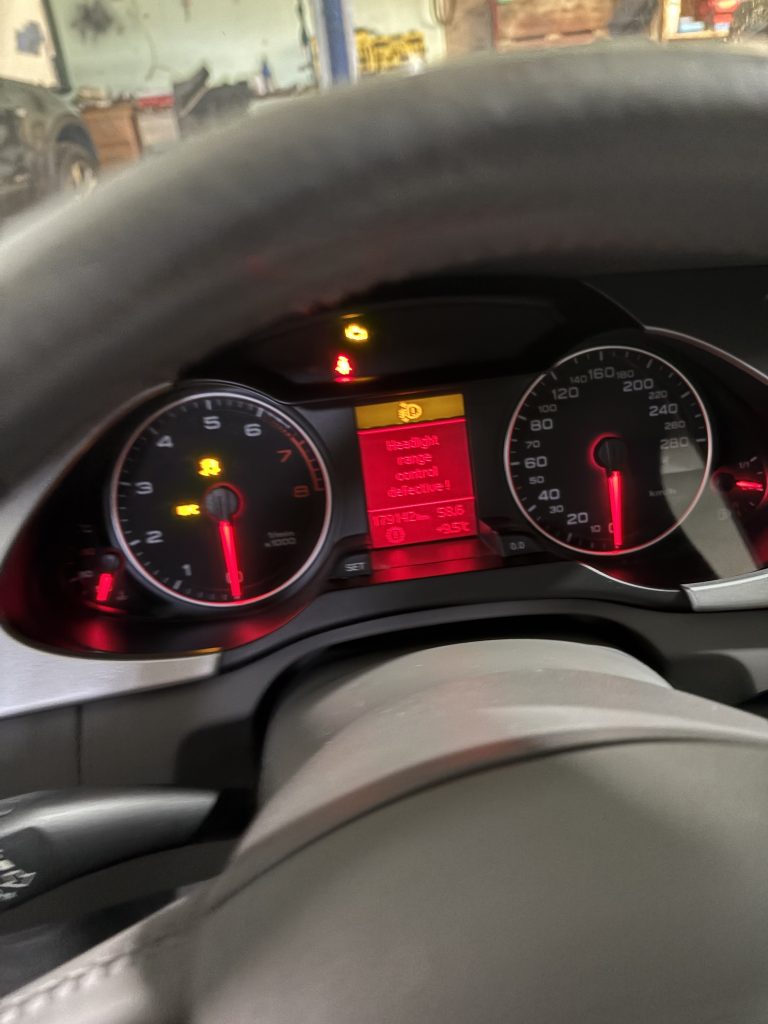

As a result, after the replacement manifold was installed, the vehicle started showing P2011 and P2015 fault codes. In simple terms, the engine hardware had been changed, but the software calibration still expected to see components that were no longer present. If the vehicle had continued to be driven in this state, additional fault codes could have appeared because the ECU was no longer receiving valid signals from the swirl flap position monitoring system.

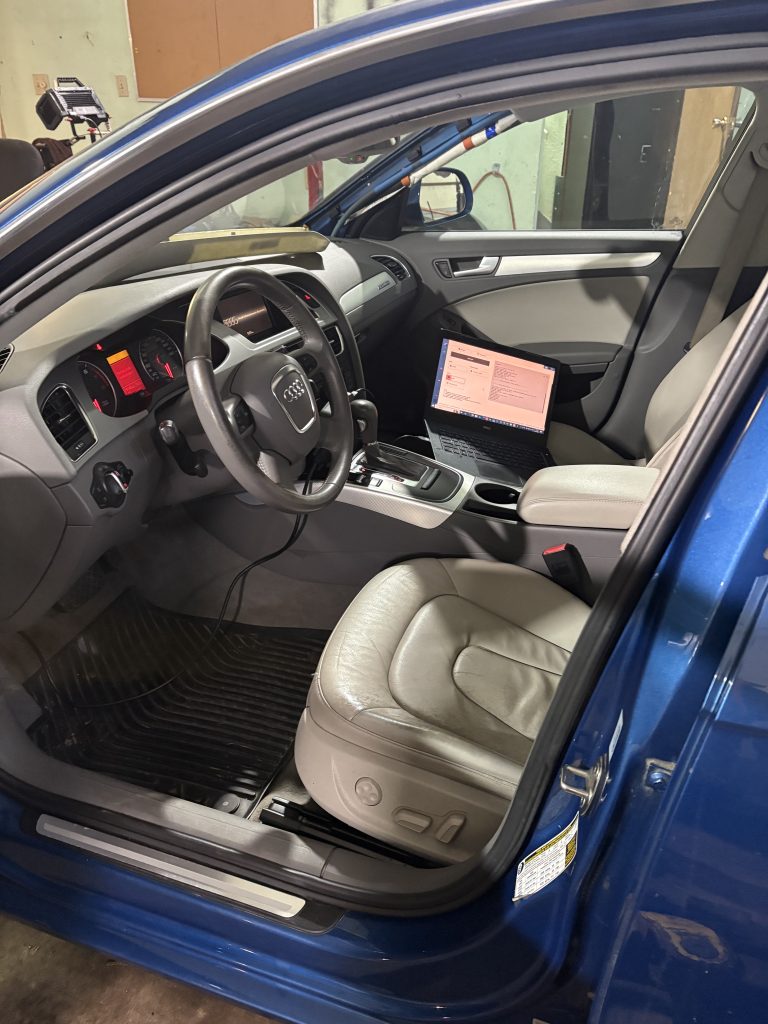

To solve the issue properly, we carried out a professional ECU reprogramming procedure on the Bosch MED17.1 engine control unit. Instead of using a crude workaround or simply suppressing diagnostic routines, we installed an original Audi factory software version from a model configuration that does not use swirl flaps from the factory. This is the technically correct approach because it keeps the ECU logic consistent with the actual hardware installed on the vehicle and preserves normal operating strategy as intended by the manufacturer.
After reprogramming, the P2015 and P2011 faults were fully resolved, and all engine systems started operating correctly. Engine performance, idle quality, throttle response, and overall drivability were not negatively affected. This is because the final solution was based on OEM factory software, not on an improvised or low-quality modified file.
If your Audi A4, A5, Q5, or other VAG vehicle with a MED17.1 ECU has intake manifold or swirl flap related faults, the correct solution is not just to clear the codes, but to match the software to the actual hardware configuration of the engine. We provide professional ECU programming, software adaptation, and module reconfiguration in Surrey and Vancouver BC, using technically correct methods and reliable solutions for long-term results.
