The P1326 error is a common issue on Hyundai and Kia vehicles across North America. It is related to the knock sensor monitoring system and ECU engine protection algorithms. Once triggered, the vehicle enters limp mode and usually cannot exceed 2000 RPM.

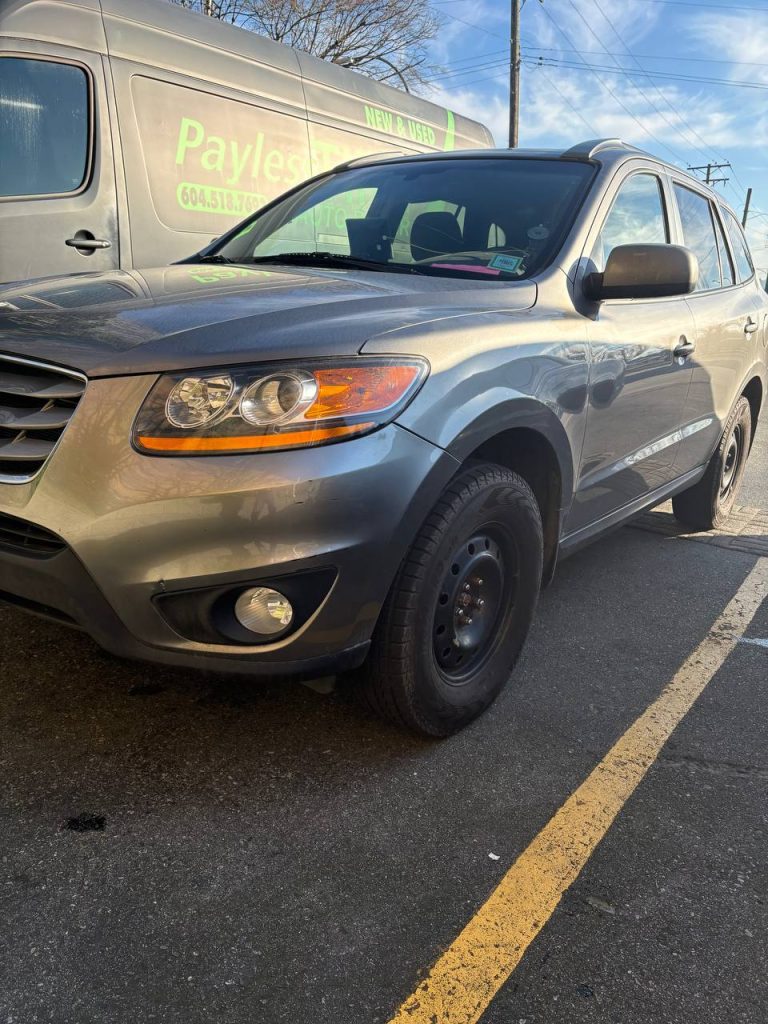

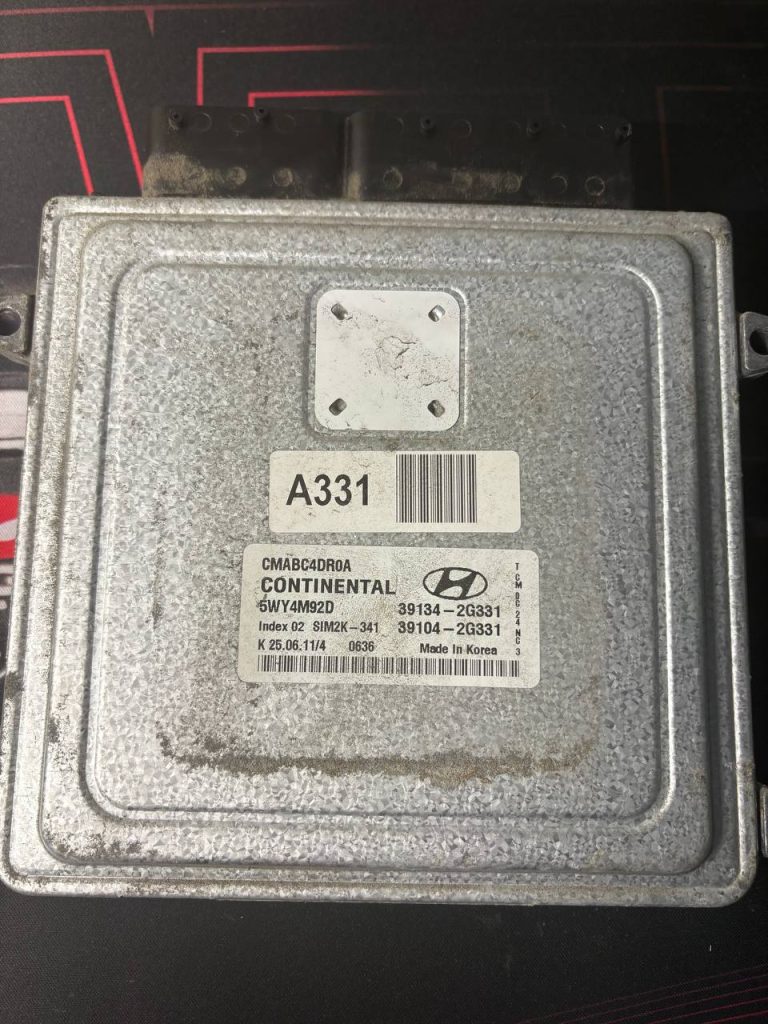

A client contacted us with a 2011 Hyundai Santa Fe 2.4 equipped with SIM2K-341 ECU. The vehicle repeatedly displayed a knock sensor fault code P1326 and immediately went into limp mode. At the same time, the engine was running smoothly with no abnormal noises or mechanical symptoms.
This issue is well known within Hyundai-Kia vehicles in the North American market. Manufacturer recall campaigns and ECU software updates were released to adjust knock sensor sensitivity and protect engines. However, not all VIN numbers were covered, leaving many owners without an official solution.
If you landed on this page, you likely already understand that finding a real solution for P1326 online is extremely difficult. Replacing the knock sensor and checking wiring usually does not resolve the issue because the sensor is deeply integrated into ECU fuel and ignition mapping, controlled entirely by software logic.

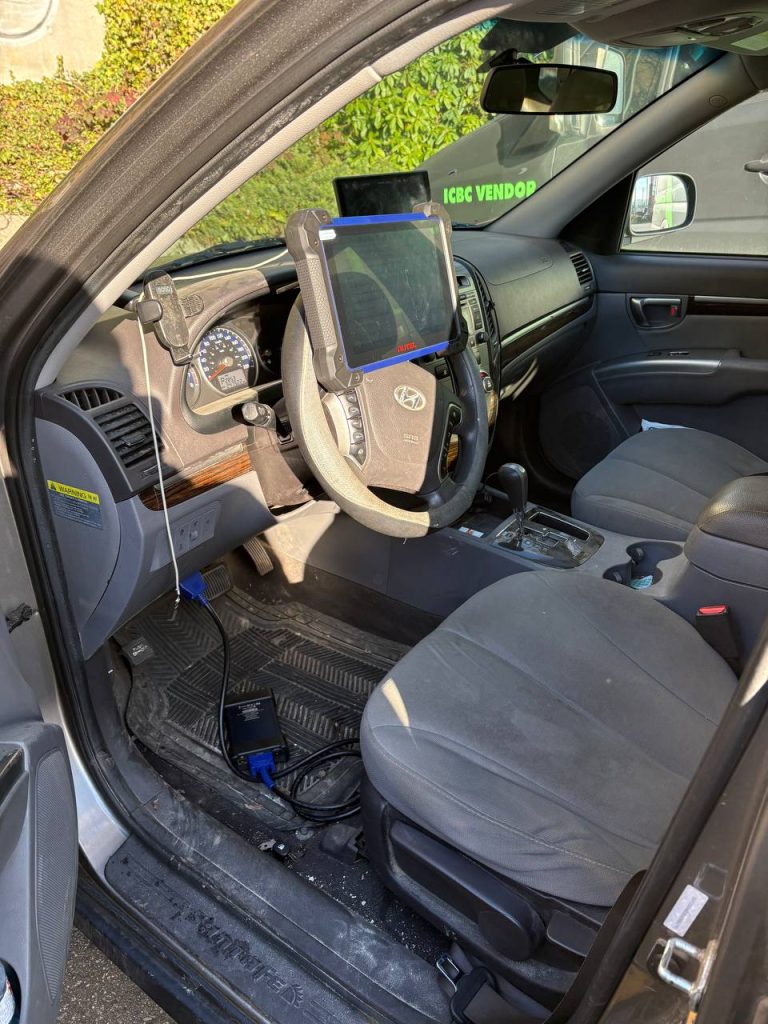

In this case, the knock sensor had already been replaced with no success. To extend the vehicle’s service life, we performed ECU software adjustments. We expanded the operational processing range of the knock sensor signal and adapted ECU parameters to match the actual engine condition.
All steps were discussed and approved with the client. The owner understood that this solution is intended to stabilize ECU operation and prolong engine life rather than repair possible internal wear.
After programming, the vehicle returned to normal operation. Limp mode was eliminated, RPM range restored, and engine performance stabilized. The client was satisfied with the outcome
If you are experiencing the P1326 error on Hyundai or Kia and want to avoid engine replacement, we can help. We provide ECU software calibration, knock sensor adaptation, and professional electronic diagnostics.
We specialize in automotive electronics repair and module programming including ECU, BCM, SRS, immobilizers, and other control units.
Located in Surrey and Vancouver, British Columbia (BC). Remote service available — you can ship your ECM/ECU to us for diagnostics and programming.
