Another Subaru Airbag / SRS module crash data reset completed by our automotive electronics specialists in Surrey BC.

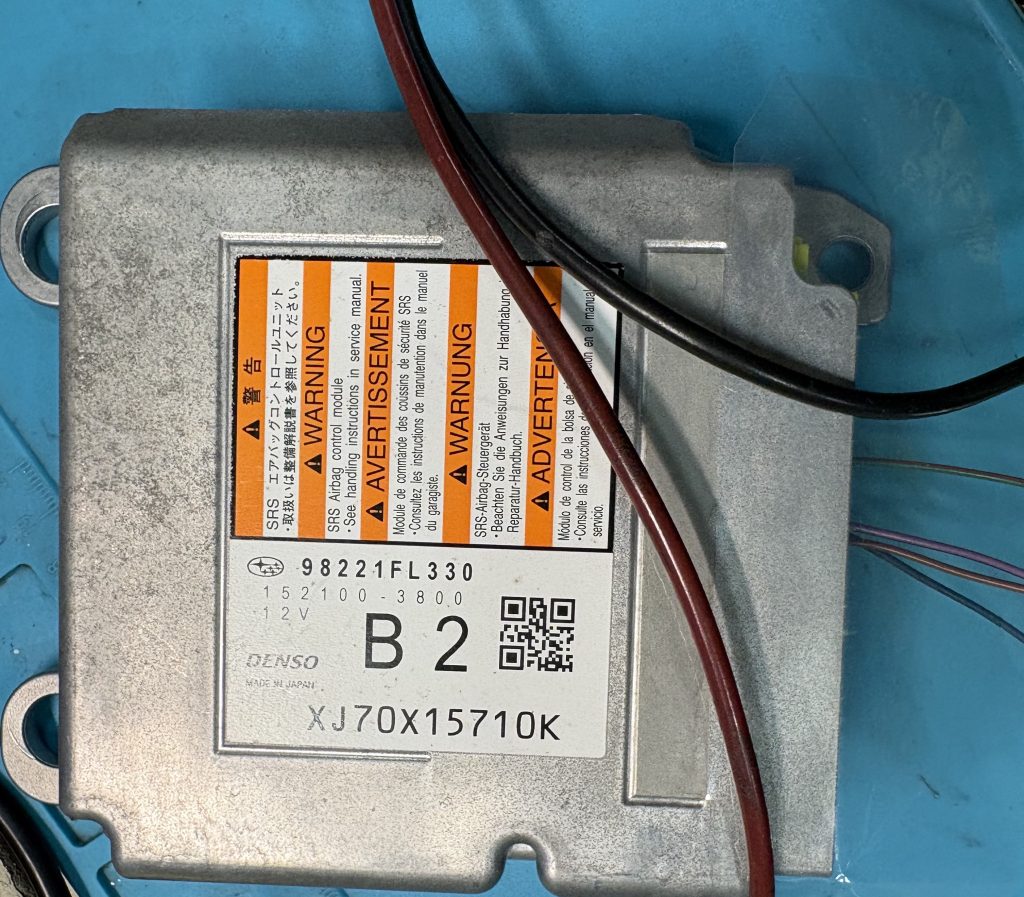

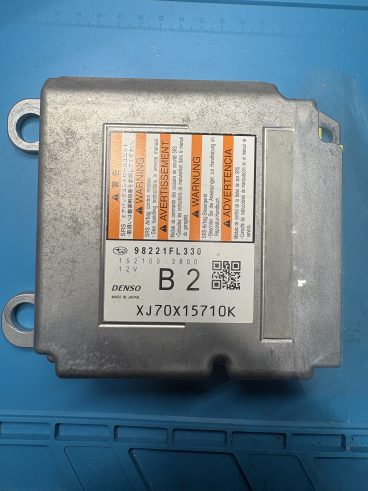

This time, we worked with a 2020 Subaru Crosstrek equipped with SRS module 98221FL330. The customer needed the stored crash data removed from the Airbag control module after an accident.
Subaru SRS Module Crash Data Reset
Before performing the reset, we first read the information stored inside the original Airbag module. The data confirmed that the module contained recorded information related to the previous collision.
Subaru 98221FL330 H8SX1726
--------------------------------------------------------
DC power supply voltage +12.92V
Turn on 12V on the adapter... ok
Set ServiceMode... ok
Read ECU Serial Number...
98221FL330
Read Errors...
B11F3:00-08 - !!! FRONT IMPACT DEPLOYMENT !!!
B1803:00-08 - SHORT IN DRIVER'S AIRBAG (TO +B)
B1813:00-08 - SHORT IN DRIVER'S AIRBAG DUAL STAGE - 2ND STEP CIRCUIT (TO +B)
B1906:00-0A - OPEN IN FRONT P/T LH
B1901:00-0A - OPEN IN FRONT P/T RH
B1911:00-0A - OPEN IN FRONT RIGHT PRETENSIONER SQUIB CIRCUIT
B1861:00-0A - OPEN IN DRIVER’S KNEE AIRBAG
B19F1:00-0A - OPEN IN FRONT P/T 2 RH
B1907:00-08 - SHORT IN FRONT P/T LH (TO GROUND)
B1801:00-0A - OPEN IN DRIVER'S AIRBAG
B1811:00-0A - OPEN IN DRIVER'S AIRBAG DUAL STAGE - 2ND STEP
B1613:00-0A - FRONT SUB SENSOR RH INITIALIZATION ERROR
B1618:00-0A - FRONT SUB SENSOR LH INITIALIZATION ERROR
B1679:00-0A - REAR FLOOR AIRBAG SENSOR LH INITIALIZATION INCOMPLETE
B1623:00-0A - SIDE AIRBAG SENSOR RH INITIALIZATION ERROR
B1628:00-0A - SIDE AIRBAG SENSOR LH INITIALIZATION ERROR
U0155:00-0A - LOST COMMUNICATION WITH INSTRUMENT PANEL CLUSTER (IPC)
CONTROL MODULE
U0122:00-0A - LOST COMMUNICATION WITH VEHICLE DYNAMICS CONTROL MODULE
B1826:00-0A - OPEN IN SIDE AIRBAG LH
B1806:00-0A - OPEN IN PASSENGER'S AIRBAG
B1821:00-0A - OPEN IN SIDE AIRBAG RH
B1836:00-0A - OPEN IN CURTAIN AIRBAG LH SQUIB CIRCUIT
B1816:00-0A - OPEN IN PASSENGER'S AIRBAG DUAL STAGE - 2ND STEP
B1831:00-0A - OPEN IN CURTAIN AIRBAG RH SQUIB CIRCUIT
B1650:00-0A - OCCUPANT DETECTION SYSTEM MALFUNCTION
--------------------------------------------------------
DC power supply voltage +12.92V
Turn on 12V on the adapter... ok
Set ServiceMode... ok
Read ECU Serial Number...
98221FL330
Read Errors...
B1613:00-0A - FRONT SUB SENSOR RH INITIALIZATION ERROR
B1618:00-0A - FRONT SUB SENSOR LH INITIALIZATION ERROR
B1679:00-0A - REAR FLOOR AIRBAG SENSOR LH INITIALIZATION INCOMPLETE
B1643:00-0A - SIDE SATELLITE SENSOR BUS RH INITIALIZATION ERROR
B1648:00-0A - SIDE SATELLITE SENSOR BUS LH INITIALIZATION ERROR
U0155:00-0A - LOST COMMUNICATION WITH INSTRUMENT PANEL CLUSTER (IPC)
CONTROL MODULE
U0122:00-0A - LOST COMMUNICATION WITH VEHICLE DYNAMICS CONTROL MODULE
B1906:00-0A - OPEN IN FRONT P/T LH
B1826:00-0A - OPEN IN SIDE AIRBAG LH
B1806:00-0A - OPEN IN PASSENGER'S AIRBAG
B1801:00-0A - OPEN IN DRIVER'S AIRBAG
B1821:00-0A - OPEN IN SIDE AIRBAG RH
B1901:00-0A - OPEN IN FRONT P/T RH
B1861:00-0A - OPEN IN DRIVER’S KNEE AIRBAG
B1811:00-0A - OPEN IN DRIVER'S AIRBAG DUAL STAGE - 2ND STEP
B1836:00-0A - OPEN IN CURTAIN AIRBAG LH SQUIB CIRCUIT
B1816:00-0A - OPEN IN PASSENGER'S AIRBAG DUAL STAGE - 2ND STEP
B1831:00-0A - OPEN IN CURTAIN AIRBAG RH SQUIB CIRCUIT
B19F1:00-0A - OPEN IN FRONT P/T 2 RH
B1911:00-0A - OPEN IN FRONT RIGHT PRETENSIONER SQUIB CIRCUIT
B1650:00-0A - OCCUPANT DETECTION SYSTEM MALFUNCTION

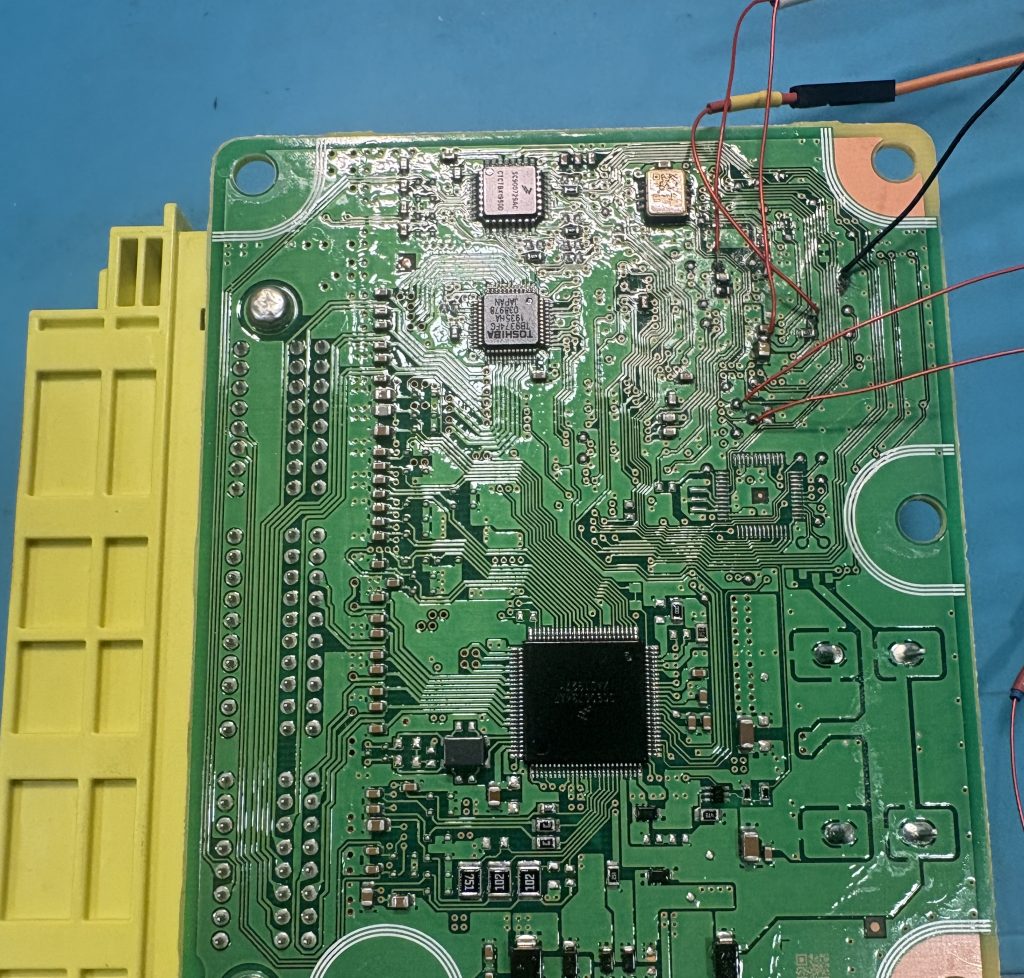

After verifying the stored data, we performed the required crash data cleaning procedure on the SRS module.
The module was then read again for verification. The previously stored collision data was no longer present.
This before-and-after verification confirmed that the 98221FL330 Airbag module had been successfully cleared of the stored crash data.
Subaru Airbag Module Service in Surrey BC
If your Subaru has been involved in an accident and the SRS/Airbag module contains stored crash data, contact us.
We provide Subaru Airbag module reset, SRS crash data reset and automotive electronics services in Surrey, Vancouver and the Lower Mainland.
Every module and vehicle platform can be different, so the appropriate procedure depends on the specific module and vehicle.
Need to clean crash data from your Subaru Airbag module? Contact us for diagnostics and service.
