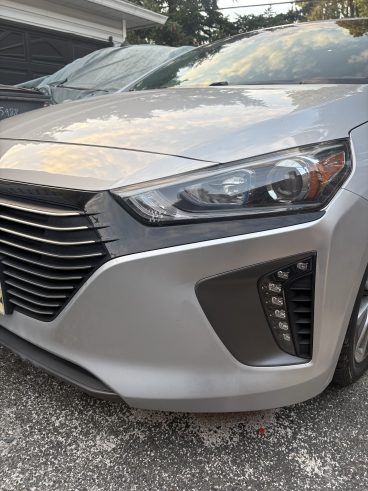

We recently completed another SRS airbag module crash data reset on a 2019 Hyundai Ioniq. The vehicle was equipped with an SRS module with part number 95910-G2000.

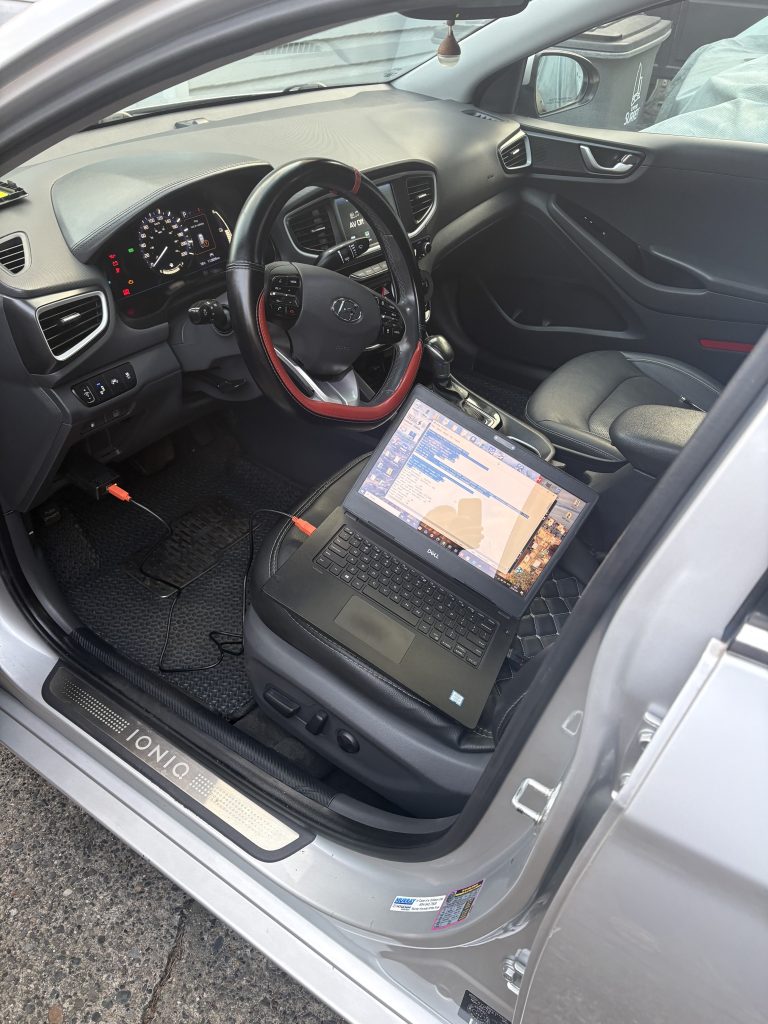

Using specialized diagnostic and programming equipment, we accessed the SRS module directly through the OBD portwithout removing the module from the vehicle.
SRS Crash Data Reading and Reset
The first step was to read the information stored in the airbag control module. During the initial scan, we identified stored crash data in the SRS module.
Hyundai Ioniq Mobis 95910-G2000 95256
——————————————————–
Enter Diagnostic Session… ok
Read Part Number… 95910-G2000
Read ACU Coding… G201
Read Errors…
B1748:00-08 – (history) P-SIS(SIDE IMPACT SENSOR PRESSURE) FRONT-PASSENGER COMMUNICATION ERROR
B1652:00-89 – !!! CRASH RECORDED IN PASSENGER SIDE AIRBAG !!!
——————————————————–
DC power supply voltage +13,5V
Turn on 12V on the adapter… ok
Open Diagnostic Session… ok
Get Seed… ok
Enter Password… failed
Open Diagnostic Session… ok
Get Seed… ok
Enter Password… ok
Clear Crash… ok
DC power supply voltage +13,51V
Turn on 12V on the adapter… ok
Open Diagnostic Session… ok
Get Seed… ok
Enter Password… ok
Clear Crash1… ok
Clear Crash2… ok
Clear Crash3… ok
Clear Errors… ok
——————————————————–
Enter Diagnostic Session… ok
Read Part Number… 95910-G2000
Read ACU Coding… G201
Read Errors…
B1361:00-89 – PRETENSIONER FRONT-DRIVER RESISTANCE TOO HIGH
B1367:00-89 – PRETENSIONER FRONT-PASSENGER RESISTANCE TOO HIGH
B1382:00-89 – SIDE AIRBAG FRONT-PASSENGER RESISTANCE TOO HIGH
B1477:00-89 – PASSENGER CURTAIN RESISTANCE.-HIGH
After confirming the stored impact information, we performed the appropriate crash data reset procedure. The module was then read again to verify the result.
After the reset, the previously stored crash information was no longer present in the module.
Mobile SRS Module Service in Surrey & Vancouver
Our car locksmith and automotive electronics service provides mobile SRS and airbag module services in Surrey, BC and Vancouver, BC. Depending on the vehicle and module, crash data can often be accessed and reset through the OBD diagnostic connector.
If your Hyundai has an SRS warning after an accident and the airbag module contains stored crash data, professional module diagnostics can determine whether the module can be serviced or requires replacement.
Hyundai Ioniq SRS module: 95910-G2000
Service: SRS crash data reset / airbag module reset
Method: OBD
Location: Surrey BC & Vancouver BC
