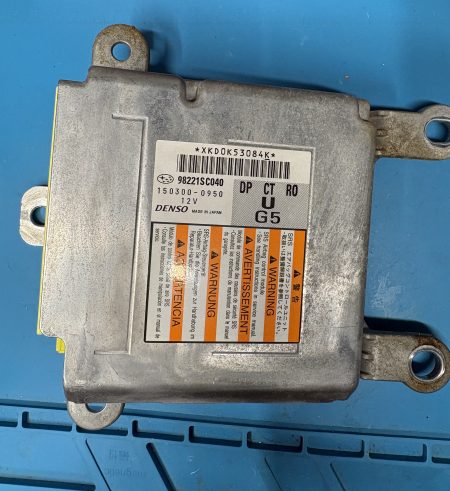

Another SRS airbag module crash data reset completed on a Subaru Forester. The vehicle was equipped with SRS module 98221SC040.

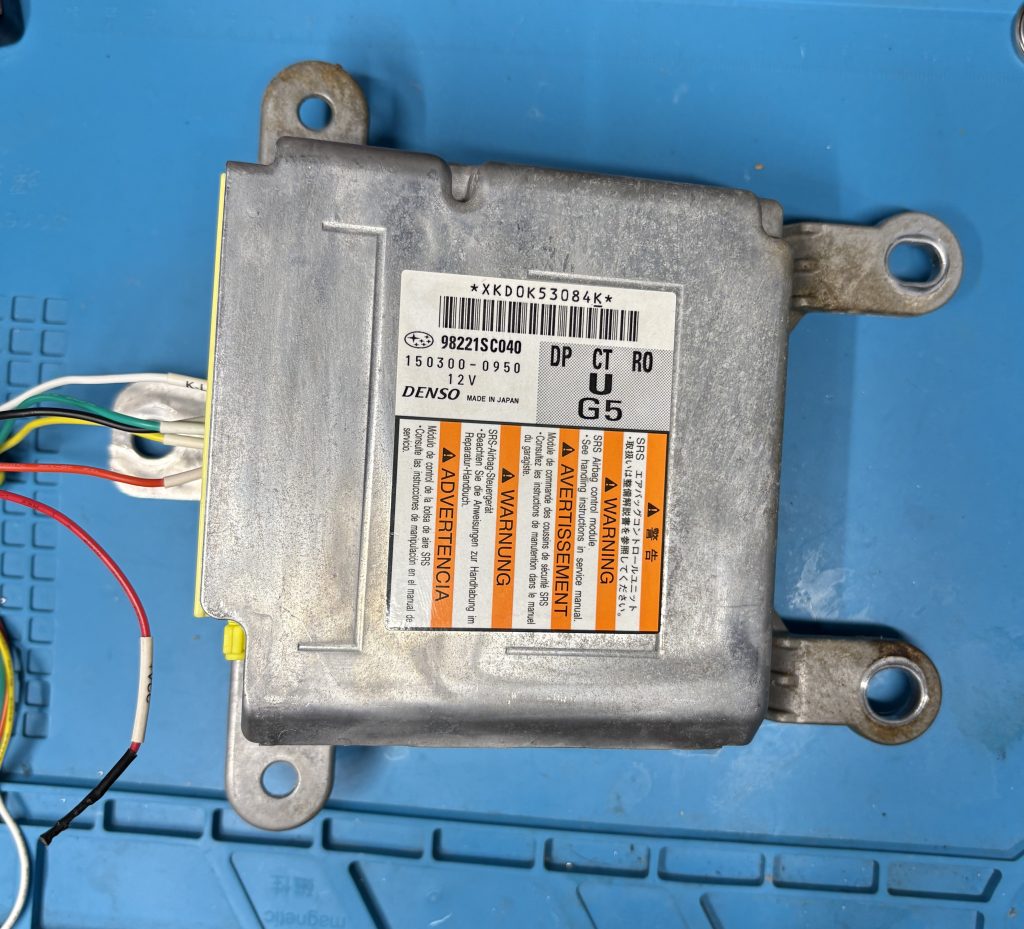

We removed the module and performed the service on the bench using K-Line communication. First, we read the module data and confirmed that crash data was stored in memory. The crash data was then cleared, and the module was read again to verify the result.
Subaru Forester Denso 98221SC040 (KLine)
——————————————————–
Connecting by KLine… ok
Start Communication… ok
Read Part Number… 98221-SC02
Read Errors…
E7 – FRONT SENSOR BUS LH COMMUNICATION ERROR
E6 – FRONT SENSOR BUS LH COMMUNICATION ERROR
22 – !!! FRONT AIRBAG FIRING OUTPUT !!!
75 – DRIVER’S AIRBAG FAILURE
61 – BELT PRETENSIONER RH FAILURE
62 – BELT PRETENSIONER LH FAILURE
11 – DRIVER’S AIRBAG FAILURE
71 – DRIVER’S AIRBAG FAILURE
27 – ODS COMMUNICATION ERROR
!!! CRASH EVENT STORAGE FULL AND LOCKED !!!
Stop Communication… ok
——————————————————–
Connecting by KLine… ok
Start Communication… ok
Read Part Number… 98221-SC02
Clear Crash … ok
Clear Errors… ok
Stop Communication… ok
——————————————————–
Connecting by KLine… ok
Start Communication… ok
Read Part Number… 98221-SC02
Read Errors…
26 – PASSENGER’S AIRBAG INDICATOR FAILURE
E2 – FRONT SENSOR BUS RH COMMUNICATION ERROR
E6 – FRONT SENSOR BUS LH COMMUNICATION ERROR
F8 – SATELLITE SENSOR BUS COMMUNICATION ERROR
EA – SIDE SENSOR BUS RH COMMUNICATION ERROR
F2 – SIDE SENSOR BUS LH COMMUNICATION ERROR
11 – DRIVER’S AIRBAG FAILURE
12 – PASSENGER’S AIRBAG FAILURE
71 – DRIVER’S AIRBAG FAILURE
Stop Communication… ok
The module was successfully reset and prepared for installation back into the vehicle.
Service: SRS crash data reset
Module: 98221SC040
Method: Bench / K-Line
